Ferrari · F430 Europe · EnglishFront bumper
Ferrari F430 · Europe · Workshop manual · English
Preparation references
The opening part of this document refers to these related tasks:
- Remove the wheel F3.06
- Remove the front wheelhouse M2.05
- Remove the front section of the underfloor M2.12
Selected source note: “Remove the lower elements of both.” This note accompanies the front wheelhouse reference.
Annotated workshop photographs

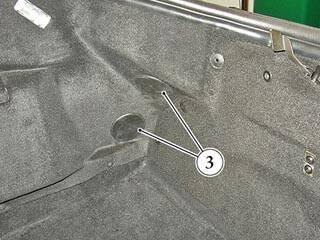

Two selected photographs show the numbered callouts used in the source instructions.
Further photographs, numbered instructions and linked procedures are in the member manual. This extract is not a complete bumper-removal procedure.
How the manual is organisedRead a second excerpt: Consultation
The manual is divided into sections, with each section identified by a different letter. Each section is divided into chapters, identified by the letter indicating the relative section followed by a sequential number.
To illustrate the topic more clearly, the text is supplemented by illustrations in which the elements described are highlighted and/or identified with numerical references.
